Australia’s first commercial installation of printed solar cells, made using specialised semiconducting inks and printed using a conventional reel-to-reel printer, has been installed on a factory roof in Newcastle.
The 200sqm array was installed in just one day by a team of five people. No other energy solution is as lightweight, as quick to manufacture, or as easy to install on this scale.
Read more: Smart windows could combine solar panels and TVs too
Our research team manufactured the solar modules using standard printing techniques; in fact, the machine that we use typically makes wine labels. Each solar cell consists of several individual layers printed on top of each other, which are then connected in series to form a bank of cells. These cells are then connected in parallel to form a solar module.
Since 1996, we have progressed from making tiny, millimetre-sized solar cells to the first commercial installation. In the latest installation each module is ten metres long and sandwiched between two layers of recyclable plastic.
At the core of the technology are the specialised semiconducting polymer-based inks that we have developed. This group of materials has fundamentally altered our ability to build electronic devices; replacing hard, rigid, glass-like materials such as silicon with flexible inks and paints that can be printed or coated over vast areas at extremely low cost.
As a result, these modules cost less than A$10 per square metre when manufactured at scale. This means it would take only 2-3 years to become cost-competitive with other technologies, even at efficiencies of only 2-3 percent.
These printed solar modules could conceivably be installed onto any roof or structure using simple adhesive tape and connected to wires using simple press-studs. The new installation at Newcastle is an important milestone on the path towards commercialisation of the technology – we will spend the next six months testing its performance and durability before removing and recycling the materials.

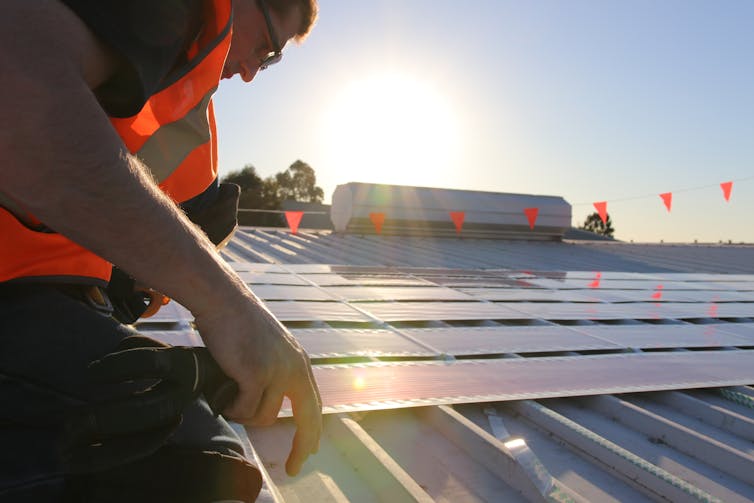

The solar cells can be installed with little more than sticky tape. University of Newcastle, Author provided
We think this technology has enormous potential. Obviously our technology is still at the trial stage, but our vision is a world in which every building in every city in every country has printed solar cells generating low-cost sustainable energy for everyone. This latest installation has brought the goal of solar roofs, walls and windows a step closer.
Read more: WA bathes in sunshine but the poorest households lack solar panels – that needs to change
Ultimately, we imagine that these solar cells could even benefit those people who don’t own or have access to roof space. People who live in apartment complexes, for example, could potentially sign up to a plan that lets them pay to access the power generated by cells installed by the building’s owner or body corporate, and need never necessarily “own” the infrastructure outright.
But in a fractured and uncertain energy policy landscape, this new technology is a clear illustration of the value of taking power into one’s own hands.
Paul Dastoor, Professor, School of Mathematical and Physical Sciences, University of Newcastle
